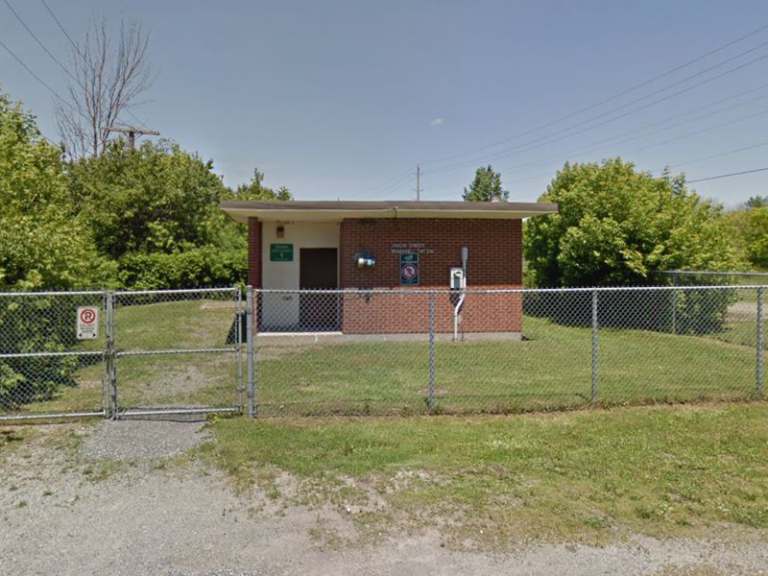

Regional Municipality of Niagara – Line 2 Sewage Pumping Station Upgrade
Background
The Line 2 Sewage Pumping Station Upgrade was undertaken by the Regional Municipality of Niagara to improve the reliability, capacity, and operational performance of an existing municipal sewage pumping station. The project included upgrades to the wet well and valve chamber, replacement of aging pumping equipment and lifting systems, installation of a new metering chamber, modernization of the control room, and enhancements to the station’s instrumentation and automation systems.
Valley Integration was selected to provide the instrumentation, PLC hardware, programming, remote monitoring, and commissioning services, delivering a modern control solution capable of supporting continuous operation and remote management of critical wastewater infrastructure.
Requirement
The pumping station modernization required a reliable automation and instrumentation platform capable of supporting upgraded process equipment while maintaining continuous operation of a remote municipal facility. The solution needed to provide:
- Advanced PLC-based automation for sewage pumping operations.
- Local operator interface for monitoring and equipment control.
- Integration with the facility’s existing SCADA infrastructure.
- Remote monitoring and control for improved operational visibility.
- Comprehensive process instrumentation and control panel upgrades.
- Complete testing, commissioning, documentation, and operator training to ensure long-term operational reliability.
Project Scope
Valley Integration was responsible for delivering the instrumentation and automation scope of the project, including:
- Supply, commissioning, and operator training for plant instrumentation, including primary elements and transmitters.
- Supply of Rockwell CompactLogix PLC hardware, PLC programming, and application software development.
- Integration of upgraded instrumentation and control systems with the facility’s existing SCADA platform.
- Implementation of a 24/7 remote monitoring and control system for the pumping station and associated remote facility devices.
- System testing, commissioning, and documentation to ensure reliable operation of the upgraded pumping station.
Technical Highlights
- Advanced Pumping Station Automation: Engineered and programmed a Rockwell CompactLogix PLC platform to provide dependable control of pumping station equipment and associated process operations.
- Industrial Operator Interface: Configured Emerson QuickPanel+ operator interfaces to deliver intuitive local monitoring, diagnostics, alarm visualization, and equipment control.
- SCADA Integration: Seamlessly integrated the upgraded automation system with the facility’s existing SCADA platform, preserving operational continuity while enhancing monitoring capabilities.
- Comprehensive Process Instrumentation: Supplied and commissioned instrumentation in accordance with the approved instrument list, including primary measuring elements, transmitters, and associated field devices for accurate process monitoring.
- 24/7 Remote Monitoring & Control: Implemented continuous remote monitoring and control capabilities, enabling operators to supervise pumping station performance and respond quickly to operational events from remote locations.
- Control System Engineering & Commissioning: Delivered PLC system hardware, application software, testing, commissioning, documentation, and operator training to ensure reliable long-term operation of the upgraded facility.
List of Major Supplies
- PLC Platform: Rockwell CompactLogix PLC
- Operator Interface Terminal (OIT): Emerson QuickPanel+
- SCADA Platform: Existing Plant SCADA System
- Process Instrumentation: Supplied by Valley Integration in accordance with the approved instrument list, including primary elements, transmitters, and associated field instrumentation.
- Control Systems: PLC hardware, application software, remote monitoring and control system, instrumentation integration, commissioning services, and engineering documentation.
Result
Valley Integration successfully delivered the instrumentation and automation upgrades for the Regional Municipality of Niagara’s Line 2 Sewage Pumping Station, providing a reliable control platform that enhances pumping station performance, operational visibility, and system reliability. Through the integration of Rockwell CompactLogix PLCs, Emerson QuickPanel+ operator interfaces, comprehensive process instrumentation, and a 24/7 remote monitoring and control system, the upgraded facility now benefits from improved process control, enhanced operator awareness, and a scalable automation solution designed to support the Region’s long-term wastewater infrastructure objectives.
